Wiki

This wiki serves as the central resource for setting up, managing, and optimizing your UNIT3D installation. Whether you're working on local development, managing a production server, or contributing to the open-source community, you'll find a number of useful guides here.

Backups

UNIT3D offers built in backup tools, available through the web dashboard or via Artisan commands, allowing you to create, manage, and restore your application snapshots.

1. Configuration

Customize config/backup.php in your editor and adjust settings as needed; inline notes outline the available configuration parameters.

Key structure:

  • backup

    • name

    • source

      • files

        Specifies which directories and files to include and which to exclude in the backup.

            'include' => [
                base_path(),
             ],

            'exclude' => [
                base_path(),
                base_path('vendor'),
                base_path('node_modules'),
                base_path('storage'),
                base_path('public/vendor/joypixels'),
             ],

        • follow_links

        • ignore_unreadable_directories

        • relative_path

      • databases

        Specifies the database connections to back up.

    • database_dump_compressor

      Compressor class (e.g. Spatie\DbDumper\Compressors\GzipCompressor::class) or null to disable.

    • destination

      Defines the storage location for backup files.​

    • temporary_directory

    Staging directory for temporary files.

  • notifications

    Define when and how backup events trigger alerts via mail, Slack, or custom channels.

  • monitor_backups

    Detect backup issues; triggers UnhealthyBackupWasFound when needed.

  • cleanup

    Define how long to keep backups and when to purge old archives.

    • strategy

    • default_strategy

      Keeps all backups for 7 days; then retains daily backups for 16 days, weekly for 8 weeks, monthly for 4 months, and yearly for 2 years. Deletes old backups exceeding 5000 MB.

          'keep_all_backups_for_days'                => 7,
          'keep_daily_backups_for_days'              => 16,
          'keep_weekly_backups_for_weeks'            => 8,
          'keep_monthly_backups_for_months'          => 4,
          'keep_yearly_backups_for_years'            => 2,
          'delete_oldest_backups_when_using_more_megabytes_than' => 5000,

  • security

    Ensure that only someone with your APP_KEY can decrypt and restore snapshots.

2. Create a backup

You can access the built-in Backups dashboard from the Staff menu. It shows each backup’s status, health, size, and count, and lets administrators launch unscheduled full, database, or files-only backups instantly. Another approach is to use the command line.

[!IMPORTANT] Backups initiated via the Staff Dashboard buttons may timeout on very large installations.

  • The following artisan commands are available:

    php artisan backup:run


    Creates a timestamped ZIP of application files and database.

    php artisan backup:run --only-db


    Creates a timestamped ZIP containing only the database.

    php artisan backup:run --only-files


    Creates a timestamped ZIP containing only application files.

3. Viewing backup list

  • List existing backups:

    php artisan backup:list


4. Restoring a backup

[!WARNING] Always test backup restoration procedures on a non‑critical environment before applying to production. Incorrect restoration can lead to data loss or service disruption.

  1. Install prerequisites (Debian/Ubuntu):

    sudo apt update && sudo apt install p7zip-full -y

  2. Retrieve your application key:

    grep '^APP_KEY=' /var/www/html/.env

  3. Extract the outer archive (enter APP_KEY when prompted):

    7z x [UNIT3D]YYYY-MM-DD-HH-MM-SS.zip

  4. Unzip inner archive, if generated:

    7z x backup.zip


[!NOTE] Full backups will contain two parts; the files backup and a database backup or dump file.

Restoring the files backup:

  1. Copy restored files to webroot:

    sudo cp -a ~/tempBackup/var/www/html/. /var/www/html/

  2. Fix file permissions:

    sudo chown -R www-data:www-data /var/www/html
    sudo find /var/www/html -type f -exec chmod 664 {} \;
    sudo find /var/www/html -type d -exec chmod 775 {} \;


Restoring the database backup:

  1. Retrieve your database credentials:

    grep '^DB_' /var/www/html/.env

  2. Restore your database:

    mysql -u unit3d -p unit3d < ~/tempBackup/db-dumps/mysql-unit3d.sql


5. Reset & Cleanup

After restoring backups, ensure to reset configurations and clean up temporary files to maintain system integrity.

  1. Fix permissions:

    sudo chown -R www-data:www-data /var/www/html
    sudo find /var/www/html -type f -exec chmod 664 {} \;
    sudo find /var/www/html -type d -exec chmod 775 {} \;

  2. Reinstall Node dependencies & rebuild (if assets need it):

    sudo rm -rf node_modules && sudo bun install && sudo bun run build

  3. Clear caches & restart services:

    cd /var/www/html
    sudo php artisan set:all_cache
    sudo systemctl restart php8.4-fpm
    sudo php artisan queue:restart


Basic tuning

[!IMPORTANT] These guides are intended for UNIT3D v8.0.0 + instances. While these are better than defaults be careful blindly following them. Proper tuning requires understanding your server, running tests and monitoring the results.

Redis single server

CategorySeverityTime To Fix
:rocket: PerformanceMajor30 minutes

Introduction

If your Redis service is running on your web server, it is highly recommended that you use Unix sockets instead of TCP ports to communicate with your web server.

Based on the Redis official benchmark, you can improve performance by up to 50% using unix sockets (versus TCP ports) on Redis.

Of course, unix sockets can only be used if both your Laravel application and Redis are running on the same server.

How to enable unix sockets

First, create the redis folder that the unix socket will be in and set appropriate permissions:

sudo mkdir -p /var/run/redis/
sudo chown -R redis:www-data /var/run/redis
sudo usermod -aG redis www-data

Next, add the unix socket path and permissions in your Redis configuration file (typically at /etc/redis/redis.conf):

unixsocket /var/run/redis/redis.sock
unixsocketperm 770

Finally, set your corresponding env variables to the socket path as above:

REDIS_HOST=/var/run/redis/redis.sock
REDIS_PORT=-1
REDIS_SCHEME=unix

Ensure that you have your config/database.php file refer to the above variables (notice the scheme addition below):

'redis' => [
    'client' => env('REDIS_CLIENT', 'phpredis'),

    'options' => [
        'scheme' => env('REDIS_SCHEME', 'tcp'),
    ],

    'default' => [
        'url' => env('REDIS_URL'),
        'host' => env('REDIS_HOST', '127.0.0.1'),
        'password' => env('REDIS_PASSWORD', null),
        'port' => env('REDIS_PORT', '6379'),
        'database' => env('REDIS_DB', '0'),
    ],

    'cache' => [
        'url' => env('REDIS_URL'),
        'host' => env('REDIS_HOST', '127.0.0.1'),
        'password' => env('REDIS_PASSWORD', null),
        'port' => env('REDIS_PORT', '6379'),
        'database' => env('REDIS_CACHE_DB', '1'),
    ],
],

Once that's all done simply restart redis.

sudo systemctl restart redis

References

[!NOTE] Keep in mind that when using unix socket you will now connect to redis-cli in terminal like so: redis-cli -s /var/run/redis/redis.sock

MySQL single server

CategorySeverityTime To Fix
:rocket: PerformanceMajor10 minutes

Introduction

If your MySQL database is running on your web server, it is highly recommended that you use Unix sockets instead of TCP ports to communicate with your web server.

Based on Percona's benchmark, you can improve performance by up to 50% using unix sockets (versus TCP ports on MySQL).

Of course, unix sockets can only be used if both your UNIT3D application and database are running on the same server which is by default.

How to enable unix sockets

First, open your MySQL configuration file.

nano /etc/mysql/my.cnf

Then, uncomment and change (if needed) the socket parameter in the [mysqld] section of one of the above configuration files:

[mysqld]
user            = mysql
pid-file        = /var/run/mysqld/mysqld.pid
socket          = /var/run/mysqld/mysqld.sock
port            = 3306

Close this file, then ensure that the mysqld.sock file exists by running an ls command on the directory where MySQL expects to find it:

ls -a /var/run/mysqld/

If the socket file exists, you will see it in this command’s output:

Output . .. mysqld.pid mysqld.sock mysqld.sock.lock If the file does not exist, the reason may be that MySQL is trying to create it, but does not have adequate permissions to do so. You can ensure that the correct permissions are in place by changing the directory’s ownership to the mysql user and group:

sudo chown mysql:mysql /var/run/mysqld/

Then ensure that the mysql user has the appropriate permissions over the directory. Setting these to 775 will work in most cases:

sudo chmod -R 755 /var/run/mysqld/

Finally, set your database.connections.mysql.unix_socket configuration variable or the corresponding env variable to the socket path as above:

DB_SOCKET=/var/run/mysqld/mysqld.sock

Once that's all done simply refresh your cache and then restart the services.

php artisan set:all_cache
sudo systemctl restart mysql && sudo systemctl restart php8.3-fpm && sudo systemctl restart nginx

References

Composer autoloader optimization

CategorySeverityTime To Fix
:rocket: PerformanceModerate5 minutes

Introduction

Due to the way PSR-0/4 autoloading rules are defined, the Composer autoloader checks the filesystem before resolving a classname conclusively.

In production, Composer allows for optimization to convert the PSR-0 and PSR-4 autoloading rules into classmap rules, making autoloading quite a bit faster. In production we also don't need all the require-dev dependencies loaded up!

How to optimize?

It's really simple. SSH to your server and run the following commands.

composer install --prefer-dist --no-dev
composer dump-autoload --optimize

References

  • https://getcomposer.org/doc/articles/autoloader-optimization.md

PHP8 OPCache

CategorySeverityTime To Fix
:rocket: PerformanceMajor10 minutes

Introduction

Opcache provides massive performance gains. One of the benchmarks suggest it can provide a 5.5X performance gain in a Laravel application!

What is OPcache? Every time you execute a PHP script, the script needs to be compiled to byte code. OPCache leverages a cache for this bytecode, so the next time the same script is requested, it doesn’t have to recompile it. This can save some precious execution time, and thus make UNIT3D faster.

Sounds awesome, so how can you use it? Easy. SSH to your server and run the following command. sudo nano /etc/php/8.3/fpm/php.ini This is assuming your on PHP 8.3. If not then adjust the command. Once you have the config open search for opcache.

Now you can change some values, I will walk you through the most important ones.

opcache.enable=1 This of course, enables OPcache for php-fpm. Make sure it is uncommented. AKA remove the;

opcache.enable_cli=1 This of course, enables OPcache for php-cli. Make sure it is uncommented. AKA remove the;

opcache.memory_consumption=256M How many Megabyte you want to assign to OPCache. Choose anything higher than 64 (default value) depending on your needs. 2GB is sufficient but if have more RAM then make use of it! Make sure it is uncommented. AKA remove the;

opcache.interned_strings_buffer=64 How many Megabyte you want to assign to interned strings. Choose anything higher than 16 (default value). 1GB is sufficient but if have more RAM then make use of it! Make sure it is uncommented. AKA remove the;

opcache.validate_timestamps=0 This will revalidate the script. If you set this to 0 (best performance), you need to manually clear the OPcache every time your PHP code changes. So if you update UNIT3D using php artisan git:update or manually make changes yourself you need to run sudo systemctl restart php8.2-fpm afterwords for your changes to take effect and show. Make sure it is uncommented. AKA remove the;

opcache.save_comments=1 This will preserve comments in your script, I recommend to keep this enabled, as some libraries depend on it, and I couldn’t find any benefits from disabling it (except from saving a few bytes RAM). Make sure it is uncommented. AKA remove the;

And there you have it folks. Experiment with these values, depending on the resources of your server. Save the file and exit and restart PHP sudo systemctl restart php8.3-fpm.

Enjoy! 🖖

PHP 8 preloading

CategorySeverityTime To Fix
:rocket: PerformanceMajor5 minutes

Introduction

This is chaining off Want More Performance? Lets talk about OPCache! guide. You must have OPCache enabled to use preloading.

PHP preloading for PHP >=7.4. Preloading is a feature of php that will pre-compile php functions and classes to opcache. Thus, this becomes available in your programs with out needing to require the files, which improves speed. To read more on php preloading you can see the opcache.preloading documentation.

Enabling preloading

SSH to your server and run the following command. sudo nano /etc/php/8.3/fpm/php.ini This is assuming your on PHP 8.3. If not then adjust the command. Once you have the config open search for preload.

Now you can change some values.

; Specifies a PHP script that is going to be compiled and executed at server
; start-up.
; https://php.net/opcache.preload
opcache.preload = '/var/www/html/preload.php';

; Preloading code as root is not allowed for security reasons. This directive
; facilitates to let the preloading to be run as another user.
; https://php.net/opcache.preload_user
opcache.preload_user=ubuntu

As you can see we are calling the preload file included in UNIT3D located in /var/www/html/preload.php. opcache.preload_user=ubuntu you should changed to your server user. Not root!!!!

And there you have it folks. Save the file and exit and restart PHP sudo systemctl restart php8.3-fpm. You are now preloading Laravel thus making UNIT3D faster.

PHP8 JIT

CategorySeverityTime To Fix
:rocket: PerformanceModerate5 minutes

Introduction

PHP 8 adds a JIT compiler to PHP's core which has the potential to speed up performance dramatically.

First of all, the JIT will only work if opcache is enabled, this is the default for most PHP installations, but you should make sure that opcache.enable is set to 1 in your php.ini file. Enabling the JIT itself is done by specifying opcache.jit_buffer_size in php.ini. So I recommend checking the OPcache guide I made first then coming back here.

How to enable JIT

SSH to your server and run the following command. sudo nano /etc/php/8.3/fpm/php.ini This is assuming your on PHP 8.2. If not then adjust the command. Once you have the config open search for opcache.jit.

If you do not get any results then search for [curl] you should see the following.

[curl]
; A default value for the CURLOPT_CAINFO option. This is required to be an
; absolute path.
;curl.cainfo =

Right above it add:

opcache.jit_buffer_size=256M

Its as simple as that. Save and exit and restart PHP. sudo systemctl restart php8.2-fpm

PM static

CategorySeverityTime To Fix
:rocket: PerformanceMajor10 minutes

[!IMPORTANT] This guide is intended for high traffic sites.

Introduction

Lets give a basic description on what these options are:

pm = dynamic – the number of child processes is set dynamically based on the following directives: pm.max_children, pm.start_servers,pm.min_spare_servers, pm.max_spare_servers.

pm = ondemand – the processes spawn on demand (when requested, as opposed to dynamic, where pm.start_servers are started when the service is started.

pm = static – the number of child processes is fixed by pm.max_children.

The PHP-FPM pm static setting depends heavily on how much free memory your server has. Basically if you are suffering from low server memory, then pm ondemand or dynamic maybe be better options. On the other hand, if you have the memory available you can avoid much of the PHP process manager (PM) overhead by setting pm static to the max capacity of your server. In other words, when you do the math, pm.static should be set to the max amount of PHP-FPM processes that can run without creating memory availability or cache pressure issues. Also, not so high as to overwhelm CPU(s) and have a pile of pending PHP-FPM operations.

Enabling static

Lets open up our PHP configuration file. sudo nano /etc/php/8.3/fpm/pool.d/www.conf

Set pm = static Set pm.max_children = 25

Save, Exit and Restart sudo systemctl restart php8.3-fpm

Conclusion

When it comes to PHP-FPM, once you start to serve serious traffic, ondemand and dynamic process managers for PHP-FPM can limit throughput because of the inherent overhead. Know your system and set your PHP-FPM processes to match your server’s max capacity.

UNIT3D v8.x.x on Arch Linux with Laravel Sail

A guide by EkoNesLeg

This guide outlines the steps to set up UNIT3D using Laravel Sail on Arch Linux. While the guide highlights the use of Arch Linux, the instructions can be adapted to other environments.

[!IMPORTANT] This guide is intended for local development environments only and is not suitable for production deployment.

Modifying .env and secure headers for non-HTTPS instances

For local development, HTTP is commonly used instead of HTTPS. To prevent mixed content issues, adjust your .env file as follows:

  1. Modify the .env Config:
    • Open your .env file in the root directory of your UNIT3D project.

    • Add or modify the following environment variables:

      DB_HOST=mysql               # Match the container name in the compose file
      DB_USERNAME=unit3d          # The username can be anything except `root`
      SESSION_SECURE_COOKIE=false # Disables secure cookies
      REDIS_HOST=redis            # Match the container name in the compose file
      CSP_ENABLED=false           # Disables Content Security Policy
      HSTS_ENABLED=false          # Disables Strict Transport Security


Prerequisites

Ensure Docker and Docker Compose are installed, as they are required for managing the Dockerized development environment provided by Laravel Sail.

Installing Docker and Docker Compose

Refer to the Arch Linux Docker documentation and install the necessary packages:

sudo pacman -S docker docker-compose

Step 1: clone the repository

Clone the UNIT3D repository to your local environment:

  1. Navigate to your chosen workspace directory:

    cd ~/PhpstormProjects

  2. Clone the repository:

    git clone git@github.com:HDInnovations/UNIT3D-Community-Edition.git


Step 2: Composer dependency installation

  1. Change to the project’s root directory:

    cd ~/PhpstormProjects/UNIT3D-Community-Edition

  2. Install Composer dependencies:

    Run the following command to install the PHP dependencies:

    composer install


Step 3: Docker environment initialization

  1. Switch to branch 8.x.x:

    Before starting Docker, switch to the 8.x.x branch:

    git checkout 8.x.x

  2. Start the Docker environment using Laravel Sail:

    ./vendor/bin/sail up -d


Step 4: app key generation

Generate a new APP_KEY in the .env file for encryption:

./vendor/bin/sail artisan key:generate

Note: If you are importing a database backup, make sure to set the APP_KEY in the .env file to match the key used when the backup was created.

Step 5: database migrations and seeders

Initialize your database with sample data by running migrations and seeders:

./vendor/bin/sail artisan migrate:fresh --seed

[!IMPORTANT] This operation resets your database and seeds it with default data. Avoid running this in a production environment.

Step 6: database preparation

Initial database loading

Prepare your database with the initial schema and data. Make sure you have a database dump file, such as prod-site-backup.sql.

MySQL data importation

Import your database dump into MySQL within the Docker environment:

./vendor/bin/sail mysql -u root -p unit3d < prod-site-backup.sql

Note: Ensure that the APP_KEY in the .env file matches the key used in your deployment environment for compatibility.

Step 7: NPM dependency management

Manage Node.js dependencies and compile assets within the Docker environment:

./vendor/bin/sail bun install
./vendor/bin/sail bun run build

If needed, refresh the Node.js environment:

./vendor/bin/sail rm -rf node_modules && bun pm cache rm && bun install && bun run build

Step 8: application cache configuration

Optimize the application's performance by setting up the cache:

./vendor/bin/sail artisan set:all_cache

Step 9: environment restart

Apply new configurations or restart the environment by toggling the Docker environment:

./vendor/bin/sail restart && ./vendor/bin/sail artisan queue:restart

Additional notes

  • Permissions: Use sudo cautiously to avoid permission conflicts, particularly with Docker commands that require elevated access.

Appendix: Sail commands for UNIT3D

This section provides a reference for managing and interacting with UNIT3D using Laravel Sail.

Docker management

  • Start environment:

    ./vendor/bin/sail up -d


    Starts Docker containers in detached mode.

  • Stop environment:

    ./vendor/bin/sail down


    Stops and removes Docker containers.

  • Restart environment:

    ./vendor/bin/sail restart


    Applies changes by restarting the Docker environment.

Dependency management

  • Install Composer dependencies:

    ./vendor/bin/sail composer install


    Installs PHP dependencies defined in composer.json.

  • Update Composer dependencies:

    ./vendor/bin/sail composer update


    Updates PHP dependencies defined in composer.json.

Laravel Artisan

  • Run migrations:

    ./vendor/bin/sail artisan migrate


    Executes database migrations.

  • Seed database:

    ./vendor/bin/sail artisan db:seed


    Seeds the database with predefined data.

  • Refresh database:

    ./vendor/bin/sail artisan migrate:fresh --seed


    Resets and seeds the database.

  • Cache configurations:

    ./vendor/bin/sail artisan set:all_cache


    Clears and caches configurations for performance.

NPM and assets

  • Install NPM dependencies:

    ./vendor/bin/sail bun install


    Installs Node.js dependencies.

  • Compile assets:

    ./vendor/bin/sail bun run build


    Compiles CSS and JavaScript assets.

Database operations

  • MySQL interaction:
    ./vendor/bin/sail mysql -u root -p

    Opens MySQL CLI for database interaction.

Queue management

  • Restart queue workers:
    ./vendor/bin/sail artisan queue:restart

    Restarts queue workers after changes.

Troubleshooting

  • View logs:

    ./vendor/bin/sail logs


    Displays Docker container logs.

  • Run PHPUnit (PEST) tests:

    ./vendor/bin/sail artisan test


    Runs PEST tests for the application.

UNIT3D v8.x.x on MacOS with Laravel Sail and PhpStorm

A guide by HDVinnie

This guide is designed for setting up UNIT3D, a Laravel application, leveraging Laravel Sail on MacOS.

Warning: This setup guide is intended for local development environments only and is not suitable for production deployment.

Modifying .env and secure headers for non-HTTPS instances

For local development, it's common to use HTTP instead of HTTPS. To prevent mixed content issues, follow these steps:

  1. Modify the .env config:

    • Open your .env file located in the root directory of your UNIT3D project.
    • Find the SESSION_SECURE_COOKIE setting and change its value to false. This action disables secure cookies, which are otherwise required for HTTPS.
    SESSION_SECURE_COOKIE=false

  2. Adjust the secure headers in config/secure-headers.php:

    • Navigate to the config directory and open the secure-headers.php file.
    • To disable the Strict-Transport-Security header, locate the hsts setting and change its value to false.
    'hsts' => false,

    • Next, locate the Content Security Policy (CSP) configuration to adjust it for HTTP. Disable the CSP to prevent it from blocking content that doesn't meet the HTTPS security requirements.
    'enable' => env('CSP_ENABLED', false),


Prerequisites

Installing Docker Desktop

Install Docker Desktop

Once installed, launch Docker Desktop

Installing GitHub Desktop

Install GitHub Desktop

Once installed, launch GitHub Desktop

Installing PHPStorm

Install PHPStorm

Once installed, launch PHPStorm

Step 1: clone the repository

Firstly, clone the UNIT3D repository to your local environment by visiting UNIT3D-Community-Edition Repo. Then click the blue colored code button and select Open with Github Desktop. Once Github Desktop is open set you local path to clone to like /Users/HDVinnie/Documents/Personal/UNIT3D-Community-Edition

Step 2: open the project in PHPStorm

Within PHPStorm goto File and then click Open. Select the local path you just did like /Users/HDVinnie/Documents/Personal/UNIT3D-Community-Edition.

The following commands are run in PHPStorm. Can do so by clicking Tools->Run Command.

Step 3: start Sail

Initialize the Docker environment using Laravel Sail:

./vendor/bin/sail up -d

Step 4: Composer dependency installation

./vendor/bin/sail composer install

Step 5: Bun dependency install and compile assets

./vendor/bin/sail bun install
./vendor/bin/sail bun run build

Step 6: database migrations and seeders

For database initialization with sample data, apply migrations and seeders:

./vendor/bin/sail artisan migrate:fresh --seed

Caution: This operation will reset your database and seed it with default data. Exercise caution in production settings.

Step 7: database preparation (if want to use a production database backup locally)

Initial database loading

Prepare your database with the initial schema and data. Ensure you have a database dump file, e.g., prod-site-backup.sql.

MySQL data importation

To import your database dump into MySQL within the local environment, use:

./vendor/bin/sail mysql -u root -p unit3d < prod-site-backup.sql

Note: For this to work properly you must set the APP_KEY value in your local .env file to match you prod APP_KEY value.

Step 8: application cache configuration

Optimize the application's performance by setting up the cache:

sail artisan set:all_cache

Step 9: visit local instance

Open your browser and visit localhost. Enjoy!

Additional notes

  • Permissions: Exercise caution with sudo to avoid permission conflicts, particularly for Docker commands requiring elevated access.

Appendix: Sail commands for UNIT3D

This section outlines commands for managing and interacting with UNIT3D using Laravel Sail.

Sail management

  • Start environment:

    ./vendor/bin/sail up -d


    Starts Docker containers in detached mode.

  • Stop environment:

    ./vendor/bin/sail down -v


    Stops and removes Docker containers.

  • Restart environment:

    ./vendor/bin/sail restart


    Applies changes by restarting Docker environment.

Dependency management

  • Install Composer dependencies:

    ./vendor/bin/sail composer install


    Installs PHP dependencies defined in composer.json.

  • Update Composer dependencies:

    ./vendor/bin/sail composer update


    Updates PHP dependencies defined in composer.json.

Laravel Artisan

  • Run migrations:

    ./vendor/bin/sail artisan migrate


    Executes database migrations.

  • Seed database:

    ./vendor/bin/sail artisan db:seed


    Seeds database with predefined data.

  • Refresh database:

    ./vendor/bin/sail artisan migrate:fresh --seed


    Resets and seeds database.

  • Cache configurations:

    ./vendor/bin/sail artisan set:all_cache


    Clears and caches configurations for performance.

NPM and assets

  • Install Bun dependencies:

    ./vendor/bin/sail bun install


    Installs Node.js dependencies.

  • Compile assets:

    ./vendor/bin/sail bun run build


    Compiles CSS and JavaScript assets.

Database operations

  • MySQL interaction:
    ./vendor/bin/sail mysql -u root -p

    Opens MySQL CLI for database interaction.

Queue management

  • Restart queue workers:
    ./vendor/bin/sail artisan queue:restart

    Restarts queue workers after changes.

Troubleshooting

  • View logs:

    ./vendor/bin/sail logs


    Displays Docker container logs.

  • PHPUnit (PEST) tests:

    ./vendor/bin/sail artisan test


    Runs PEST tests for application.

Meilisearch setup for UNIT3D

Note: This guide assumes you are using a sudo user named ubuntu.

1. Install and configure Meilisearch

  1. Install Meilisearch:

    sudo curl -L https://install.meilisearch.com | sudo sh
    sudo mv ./meilisearch /usr/local/bin/
    sudo chmod +x /usr/local/bin/meilisearch

  2. Set up directories:

    sudo mkdir -p /var/lib/meilisearch/data /var/lib/meilisearch/dumps /var/lib/meilisearch/snapshots
    sudo chown -R ubuntu:ubuntu /var/lib/meilisearch
    sudo chmod -R 750 /var/lib/meilisearch

  3. Generate and record a master key:

    Generate a 16-byte master key:

    openssl rand -hex 16


    Record this key, as it will be used in the configuration file.

  4. Configure Meilisearch:

    sudo curl https://raw.githubusercontent.com/meilisearch/meilisearch/latest/config.toml -o /etc/meilisearch.toml
    sudo nano /etc/meilisearch.toml


    Update the following in /etc/meilisearch.toml:

    env = "production"
    master_key = "your_16_byte_master_key"
    db_path = "/var/lib/meilisearch/data"
    dump_dir = "/var/lib/meilisearch/dumps"
    snapshot_dir = "/var/lib/meilisearch/snapshots"

  5. Create and enable service:

    sudo nano /etc/systemd/system/meilisearch.service


    Add the following:

    [Unit]
    Description=Meilisearch
    After=systemd-user-sessions.service

    [Service]
    Type=simple
    WorkingDirectory=/var/lib/meilisearch
    ExecStart=/usr/local/bin/meilisearch --config-file-path /etc/meilisearch.toml
    User=ubuntu
    Group=ubuntu
    Restart=on-failure

    [Install]
    WantedBy=multi-user.target


    Enable and start the service:

    sudo systemctl enable meilisearch
    sudo systemctl start meilisearch
    sudo systemctl status meilisearch


2. Configure UNIT3D for Meilisearch

  1. Update .env:

    sudo nano /var/www/html/.env


    Add the following:

    SCOUT_DRIVER=meilisearch
    MEILISEARCH_HOST=http://127.0.0.1:7700
    MEILISEARCH_KEY=your_16_byte_master_key

  2. Clear configuration and restart services:

    sudo php artisan set:all_cache
    sudo systemctl restart php8.3-fpm
    sudo php artisan queue:restart


3. Maintenance

  1. Reload data and sync indexes:

    • Sync index settings:

      After UNIT3D updates, sync the index settings to ensure they are up to date:

      sudo php artisan scout:sync-index-settings

    • Reload data:

      Whenever Meilisearch is upgraded or during the initial setup, the database must be reloaded:

      sudo php artisan auto:sync_torrents_to_meilisearch --wipe && sudo php artisan auto:sync_people_to_meilisearch


See also

For further details, refer to the official Meilisearch documentation.

Server management

[!IMPORTANT] The following assumptions are made:

  • You have one root user and one regular user with sudo privileges on the dedicated server.
  • The regular user with sudo privileges is assumed to have the username ubuntu.
  • The project root directory is located at /var/www/html.
  • All commands are run from the project root directory.

1. Elevated shell

All SSH and SFTP operations should be conducted using the non-root user. Use sudo for any commands that require elevated privileges. Do not use the root user directly.

2. File permissions

Ensure that everything in /var/www/html is owned by www-data:www-data, except for node_modules, which should be owned by root:root.

Set up these permissions with the following commands:

sudo usermod -a -G www-data ubuntu
sudo chown -R www-data:www-data /var/www/html
sudo find /var/www/html -type f -exec chmod 664 {} \;
sudo find /var/www/html -type d -exec chmod 775 {} \;
sudo chgrp -R www-data storage bootstrap/cache
sudo chmod -R ug+rwx storage bootstrap/cache
sudo rm -rf node_modules && sudo bun install && sudo bun run build

3. Handling code changes

PHP changes

If any PHP files are modified, run the following commands to clear the cache, restart the PHP-FPM service, and restart the Laravel queues:

sudo php artisan set:all_cache && sudo systemctl restart php8.3-fpm && sudo php artisan queue:restart

Static assets (SCSS, JS)

If you make changes to SCSS or JavaScript files, rebuild the static assets using:

bun run build

4. Changing the domain

  1. Update the environment variables:

    Modify the domain in the APP_URL and MIX_ECHO_ADDRESS variables within the .env file:

    sudo nano ./.env

  2. Refresh the TLS certificate:

    Use certbot to refresh the TLS certificate:

    certbot --redirect --nginx -n --agree-tos --email=sysop@your_domain.tld -d your_domain.tld -d www.your_domain.tld --rsa-key-size 2048

  3. Update the WebSocket configuration:

    Update all domains listed in the WebSocket configuration to reflect the new domain:

    sudo nano ./laravel-echo-server.json

  4. Restart the chatbox server:

    Reload the Supervisor configuration to apply changes:

    sudo supervisorctl reload

  5. Compile static assets:

    Rebuild the static assets:

    bun run build


5. Meilisearch maintenance

Refer Meilisearch setup for UNIT3D, specifically the maintenance section, for managing upgrades and syncing indexes.

UNIT3D open source: how to share your source code

A guide by EkoNesLeg

1. Introduction

As part of complying with the GNU Affero General Public License (AGPL), sites that modify and distribute UNIT3D are required to share their source code. This guide provides an easy process for creating a sanitized tarball of your modified source code and encourages you to create and update an "Open Source" page on your site to make this code available.

2. Setting up tarball creation

2.1 Exclude sensitive files

To create a tarball that includes only the modified source code and excludes sensitive files like configuration data, you can take advantage of the existing .gitignore file in your UNIT3D deployment. Here’s how:

  1. Reference .gitignore for exclusions:

    If your production environment has the original .gitignore file that already lists the files and directories you don’t want to include in version control, you can use it to exclude those same items from your tarball:

    ln -s /var/www/html/.gitignore /var/www/html/.tarball_exclude

  2. Additional exclusions (if needed):

    If additional exclusions are needed, or if you've removed the git environment from your production environment, you should manually add the exclusions to the .tarball_exclude file:

    nano /var/www/html/.tarball_exclude


    Add the following to the file:

.env
node_modules
storage
vendor
public
*.gz
*.lock
UNIT3D-Announce
unit3d-announce
laravel-echo-server.json
config
.DS_Store
.idea
.vscode
nbproject
.phpunit.cache
.ftpconfig
storage/backups
storage/debugbar
storage/gitupdate
storage/*.key
laravel-echo-server.lock
.vagrant
Homestead.json
Homestead.yaml
npm-debug.log
_ide_helper.php
supervisor.ini
.phpunit.cache/
.phpstan.cache/
caddy
frankenphp
frankenphp-worker.php
data
config/caddy/autosave.json
build
bootstrap
*.sql
*.DS_Storecomposer.lock
*.swp
coverage.xml
cghooks.lock
*.pyc
emojipy-*
emojipy.egg-info/
lib/js/tests.html
lib/js/tests/npm-debug.log

2.2 Create the tarball

  1. Create a script to generate the tarball:

    nano /var/www/html/create_tarball.sh

  2. Add the following content to the script:

    #!/bin/bash

    TARBALL_NAME="UNIT3D_Source_$(date +%Y%m%d_%H%M%S).tar.gz"
    TAR_EXCLUDES="--exclude-from=/var/www/html/.tarball_exclude"

    tar $TAR_EXCLUDES -czf /var/www/html/public/$TARBALL_NAME -C /var/www html

    # Create a symlink to the latest tarball
    ln -sf "/var/www/html/public/$TARBALL_NAME" "/var/www/html/public/UNIT3D_Source_LATEST.tar.gz"

  3. Make the script executable:

    chmod +x /var/www/html/create_tarball.sh

  4. Run the script manually whenever you update your site:

    /var/www/html/create_tarball.sh


3. Creating and updating the "Open source" Page

  1. Create an "Open source" page:

    Go to your site's /dashboard/pages section and create a new page called "Open source."

  2. Add the following Markdown content to the page:

    ## Open source

    We comply with the UNIT3D's GNU Affero General Public License (AGPL) by sharing our modified source code. You can download the latest version of our source code below.

    - **[Download Latest Source Code](/UNIT3D_Source_LATEST.tar.gz)**

    ### License information

    Our site runs on a modified version of [UNIT3D](https://github.com/HDInnovations/UNIT3D-Community-Edition). For more details on the license, visit the [GNU AGPL License](https://github.com/HDInnovations/UNIT3D-Community-Edition/blob/master/LICENSE).

  3. Manually update this page whenever you update your site:

    After running the tarball creation script, update the page content if necessary to reflect any changes or additional notes about the modifications made.

4. Encouraging compliance and contributions

By publicly sharing your modified source code, you not only comply with the AGPL but also contribute to the open-source community. We encourage sites to contribute their changes back to the upstream repository by submitting pull requests, which helps improve UNIT3D for everyone.

Torrent API

Introduction

UNIT3D is offering a new {JSON:API}. If you haven't already head over to your profile. Hover Settings nav and click API Key. From there you can generate or reset your API Key.

Ecosystem

Torrent auto uploaders

API authentication

There are several ways of passing the API token to UNIT3D. We'll discuss each of these approaches while using the Guzzle HTTP library to demonstrate their usage. You may choose any of these approaches based on your needs to communicate with our API.

  • Query string

    UNIT3D's API consumers may specify their token as an api_token query string value:

    $response = $client->request('GET', '/api/torrents?api_token=YOUR_TOKEN_HERE);

  • Request payload

    UNIT3D's API consumers may include their API token in the request's form parameters as an api_token:

    $response = $client->request('POST', '/api/torrents', [
        'headers' => [
            'Accept' => 'application/json',
        ],
        'form_params' => [
            'api_token' => 'YOUR_TOKEN_HERE',
        ],
    ]);

  • Bearer token

    UNIT3D's API consumers may provide their API token as a Bearer token in the Authorization header of the request:

    $response = $client->request('POST', '/api/torrents', [
        'headers' => [
            'Authorization' => 'Bearer YOUR_TOKEN_HERE',
            'Accept' => 'application/json',
        ],
    ]);


API endpoints

Upload a torrent

Endpoint: POST /api/torrents/upload

Parameters:

ParameterTypeDescription
torrentfile.torrent file
nfofile.nfo file
namestringTorrent name
descriptionstringTorrent description
mediainfostringMediaInfo text output
bdinfostringBDInfo quick summary output
category_idintCategory ID
type_idintType ID
resolution_idintResolution ID
region_idintRegion ID
distributor_idintDistributor ID
season_numberintSeason number (TV only)
episode_numberintEpisode number (TV only)
tmdbintTMDB ID
imdbintIMDB ID
tvdbintTVDB ID
malintMAL ID
igdbintIGDB ID (Games only)
anonymousboolShould the uploader's username be hidden?
personal_releaseboolIs the torrent's content created by the uploader?
internal*boolIs the torrent an internal release?
refundable*boolIs the torrent refundable?
featured*boolShould the torrent be featured on the front page?
free*intPercentage (0-100) of the torrent's size that is free to leech
fl_until*intNumber of days the torrent should offer freeleech
doubleup*boolShould the torrent offer double upload?
du_until*intNumber of days the torrent should offer double upload
sticky*boolShould the torrent be stickied on the torrent index?
mod_queue_opt_in*boolShould the torrent be sent to moderation queue?

*Only available to staff and internal users.

Fetch a torrent

Endpoint: GET /api/torrents/:id

Example:

https://unit3d.site/api/torrents/39765?api_token=YOURTOKENHERE

Fetch torrents index (latest 25 torrents)

Endpoint: GET /api/torrents

Example:

https://unit3d.site/api/torrents?api_token=YOURTOKENHERE

Filter torrents

Endpoint: GET /api/torrents/filter

Optional Parameters:

ParameterTypeDescription
perPageintAmount of results to return per page (default: 25)
sortFieldstringField to sort by
sortDirectionstringDirection to sort the results. One of: asc (Ascending), desc (Descending) (default: asc)
namestringFilter by the torrent's name
descriptionstringFilter by the torrent's description
mediainfostringFilter by the torrent's MediaInfo
bdinfostringFilter by the torrent's BDInfo
uploaderstringFilter by the torrent uploader's username
keywordsstringFilter by any of the torrent's keywords (Multiple keywords can be comma-separated)
startYearintReturn only torrents whose content was released after or in the given year
endYearintReturn only torrents whose content was released before or in the given year
categoriesint[]Filter by the torrent's category
typesint[]Filter by the torrent's type
resolutionsint[]Filter by the torrent's resolution
genresint[]Filter by the torrent's genre
tmdbIdintFilter by the torrent's TMDB ID
imdbIdintFilter by the torrent's IMDB ID
tvdbIdintFilter by the torrent's TVDB ID
malIdintFilter by the torrent's MAL ID
playlistIdintReturn only torrents within the playlist of the given ID
collectionIdintReturn only torrents within the collection of the given ID
freeintFilter by the torrent's freeleech discount (0-100)
doubleupboolFilter by if the torrent offers double upload
featuredboolFilter by if the torrent is featured on the front page
refundableboolFilter by if the torrent is refundable
highspeedboolFilter by if the torrent has seeders whose IP address has been registered as a seedbox
internalboolFilter by if the torrent is an internal release
personalReleaseboolFilter by if the torrent's content is created by the uploader
aliveboolFilter by if the torrent has 1 or more seeders
dyingboolFilter by if the torrent has 1 seeder and has been downloaded more than 3 times
deadboolFilter by if the torrent has 0 seeders
file_namestringFilter by the name of a file within a torrent
seasonNumberintFilter by the torrent's season number
episodeNumberintFilter by the torrent's episode number

Example:

https://unit3d.site/api/torrents/filter?tmdbId=475557&categories[]=1&api_token=YOURTOKENHERE

Personal account info

Endpoint: GET /api/user

Response:

{"username":"UNIT3D","group":"Owner","uploaded":"50 GiB","downloaded":"1 GiB","ratio":"50","buffer":"124 GiB","seeding":0,"leeching":0,"seedbonus":"0.00","hit_and_runs":0}

Example:

https://unit3d.site/api/user?api_token=YOURTOKENHERE

Translations

UNIT3D uses weblate for translations. You can easily contribute to translations at https://hosted.weblate.org/engage/unit3d/. Use the following graphic to see if your native language could use some work.

Translation status

Updating UNIT3D

Update UNIT3D to the latest version by reviewing the release notes and following the steps below:

1. Create backup

UNIT3D offers built-in backups. Refer to the Backups documentation for usage.

[!IMPORTANT] Ensure there is a complete backup before proceeding.

2. Enter maintenance mode

cd /var/www/html
php artisan down

3. Update UNIT3D

[!NOTE] Before running the update, review the new release’s minimum requirements to ensure the environment meets them.

  1. Proceed to update:

    The updater will fetch the latest commits from the upstream repository and stage them for installation.

    cd /var/www/html
    php artisan git:update


    There will be a prompt to confirm each step; choose yes to overwrite with the new version.

    Start the update process (yes/no) [yes]:
    > yes

  2. Accept upstream files:

    When prompted for each changed file, type yes to overwrite the local copy or press Enter to accept the default shown in brackets.

    Update config/unit3d.php (yes/no) [yes]:
    > yes

    git checkout origin/master -- config/unit3d.php
    [============================] (Done!)

  3. Run new migrations:

    Run new migrations (php artisan migrate) (yes/no) [yes]:
    > yes

  4. Install new packages:

    Install new packages (composer install) (yes/no) [yes]:
    > yes

  5. Compile assets:

    Compile assets (bun run build) (yes/no) [yes]:
    > yes


Troubleshooting clean-up

The following commands are optional and should be run only as needed to resolve specific errors:

  • Finish any migrations not completed:

    sudo php artisan migrate

  • Reinstall dependencies:

    composer install --prefer-dist --no-dev -o

  • Clear caches:

    sudo php artisan cache:clear && \
    sudo php artisan queue:clear && \
    sudo php artisan auto:email-blacklist-update && \
    sudo php artisan auto:cache_random_media && \
    sudo php artisan set:all_cache

  • Rebuild static assets:

    sudo bun install && sudo bun run build

  • Restart services:

    sudo systemctl restart php8.4-fpm && \
    sudo php artisan queue:restart && \
    sudo php artisan up

  • If running external UNIT3D-Announce, restart the supervisor services:

    sudo supervisorctl reread && \
    sudo supervisorctl update && \
    sudo supervisorctl reload


Upgrading PHP version

Upgrade to PHP 8

sudo apt update sudo apt -y upgrade

A reboot is important after any upgrade.

sudo systemctl reboot

After a few minutes SSH back into your server

sudo apt update sudo apt install lsb-release ca-certificates apt-transport-https software-properties-common -y sudo add-apt-repository ppa:ondrej/php

Hit enter key when prompted to add the repository

sudo apt update sudo apt install php8.0 sudo apt-get install -qq curl debconf-utils php-pear php8.0-curl php8.0-dev php8.0-gd php8.0-mbstring php8.0-zip php8.0-mysql php8.0-xml php8.0-fpm php8.0-intl php8.0-bcmath php8.0-cli php8.0-opcache sudo service apache2 stop

Next lets edit NGINX to use new PHP8

sudo nano /etc/nginx/sites-available/default

Find fastcgi_pass unix:/var/run/php/***.sock;

*** will be your site name, unit3d or php7.4 for the most part

Replace fastcgi_pass unix:/var/run/php/***.sock; with fastcgi_pass unix:/var/run/php/php8.0-fpm.sock;.

Save and exit.

Test config sudo nginx -t

*If you didn't mess up you will see

nginx: the configuration file /etc/nginx/nginx.conf syntax is ok
nginx: configuration file /etc/nginx/nginx.conf test is successful

sudo systemctl reload nginx sudo systemctl reload php8.0-fpm sudo apt purge '^php7.4.*'

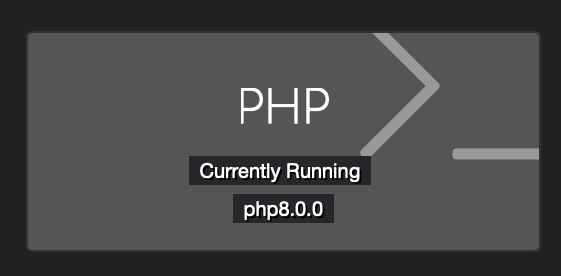

You should now be running PHP8 and can confirm by checking your staff dashboard.


Upgrade to PHP 8.1

sudo apt update sudo apt -y upgrade

A reboot is important after any upgrade.

sudo systemctl reboot

After a few minutes SSH back into your server

sudo apt update sudo apt install lsb-release ca-certificates apt-transport-https software-properties-common -y sudo add-apt-repository ppa:ondrej/php

Hit enter key when prompted to add the repository

sudo apt update sudo apt install php8.1 sudo apt-get install -qq curl debconf-utils php-pear php8.1-curl php8.1-dev php8.1-gd php8.1-mbstring php8.1-zip php8.1-mysql php8.1-xml php8.1-fpm php8.1-intl php8.1-bcmath php8.1-cli php8.1-opcache sudo service apache2 stop

Next lets edit NGINX to use new PHP 8.1

sudo nano /etc/nginx/sites-available/default

Find fastcgi_pass unix:/var/run/php/***.sock;

*** will be your site name, unit3d or php8.0 for the most part

Replace fastcgi_pass unix:/var/run/php/***.sock; with fastcgi_pass unix:/var/run/php/php8.1-fpm.sock;.

Save and exit.

Test config sudo nginx -t

*If you didn't mess up you will see

nginx: the configuration file /etc/nginx/nginx.conf syntax is ok
nginx: configuration file /etc/nginx/nginx.conf test is successful

sudo systemctl reload nginx sudo systemctl reload php8.1-fpm sudo apt purge '^php7.4.*'

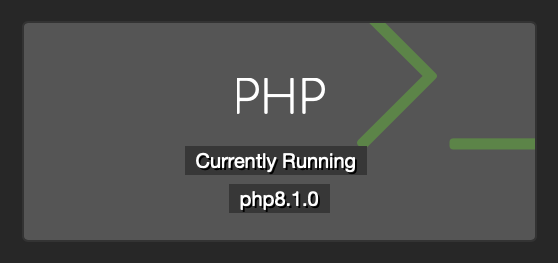

You should now be running PHP8.1 and can confirm by checking your staff dashboard.


Upgrade to PHP 8.2

sudo apt update sudo apt -y upgrade

A reboot is important after any upgrade.

sudo systemctl reboot

After a few minutes SSH back into your server

sudo apt update sudo apt install lsb-release ca-certificates apt-transport-https software-properties-common -y sudo add-apt-repository ppa:ondrej/php

Hit enter key when prompted to add the repository

sudo apt update sudo apt install php8.2 sudo apt-get install -qq curl debconf-utils php-pear php8.2-curl php8.2-dev php8.2-gd php8.2-mbstring php8.2-zip php8.2-mysql php8.2-xml php8.2-fpm php8.2-intl php8.2-bcmath php8.2-cli php8.2-opcache sudo service apache2 stop sudo apt remove apache2

Next lets edit NGINX to use new PHP 8.2

sudo nano /etc/nginx/sites-available/default

Find fastcgi_pass unix:/var/run/php/***.sock;

*** will be your site name, unit3d or php8.1 for the most part

Replace fastcgi_pass unix:/var/run/php/***.sock; with fastcgi_pass unix:/var/run/php/php8.2-fpm.sock;.

Save and exit.

Test config sudo nginx -t

*If you didn't mess up you will see

nginx: the configuration file /etc/nginx/nginx.conf syntax is ok
nginx: configuration file /etc/nginx/nginx.conf test is successful

sudo systemctl restart nginx sudo systemctl restart php8.2-fpm sudo systemctl stop php8.1-fpm sudo apt purge '^php8.1.*' sudo apt autoremove

You should now be running PHP8.2 and can confirm by checking your staff dashboard.

NOTE: If you had tuning done on PHP 8.1 you will need to reapply them to new PHP 8.2 configs. sudo nano /etc/php/8.2/fpm/pool.d/www.conf sudo nano /etc/php/8.2/fpm/php.ini

Upgrade to PHP 8.3

Save existing php package list to packages.txt file in case you have some additional ones not noted in this guide.

sudo dpkg -l | grep php | tee packages.txt

Add Ondrej's PPA

sudo add-apt-repository ppa:ondrej/php # Press enter when prompted. sudo apt update

Install new PHP 8.3 packages

sudo apt install php8.3-common php8.3-cli php8.3-fpm php8.3-{redis,bcmath,curl,dev,gd,igbinary,intl,mbstring,mysql,opcache,readline,xml,zip}

Next lets edit NGINX to use new PHP 8.3

sudo nano /etc/nginx/sites-available/default

Find fastcgi_pass unix:/var/run/php/***.sock;

*** will be your site name, unit3d or php8.2 for the most part

Replace fastcgi_pass unix:/var/run/php/***.sock; with fastcgi_pass unix:/var/run/php/php8.3-fpm.sock;.

Save and exit.

Test config sudo nginx -t

*If you didn't mess up you will see

nginx: the configuration file /etc/nginx/nginx.conf syntax is ok
nginx: configuration file /etc/nginx/nginx.conf test is successful

sudo systemctl restart nginx sudo systemctl restart php8.3-fpm sudo systemctl stop php8.2-fpm

Remove old packages

sudo apt purge '^php8.2.*'

You should now be running PHP8.3 and can confirm by checking your staff dashboard.

NOTE: If you had tuning done on PHP 8.2 you will need to reapply them to new PHP 8.3 configs. sudo nano /etc/php/8.3/fpm/pool.d/www.conf sudo nano /etc/php/8.3/fpm/php.ini

UNIT3D-Announce

UNIT3D-Announce is an optional external announce service written in rust that is designed to reduce CPU usage on high-volume trackers managing over 1 million peers.

[!TIP] Enable only when extra performance is needed. The default announce suffices otherwise.

Refer to the upstream documentation for configuration and usage details.

  • Consult the README for installation and usage instructions.

  • Review the .env.example to configure required variables.
